Variants

• Clear / Transparent : Maximum Light Transmission (up To 90%)

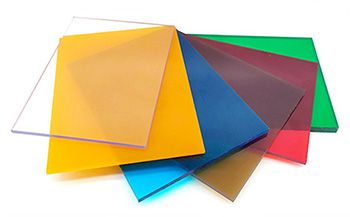

• Coloured / Tinted / Opaque : Bronze, Green, Blue, Opal White, Grey For Glare Control &Aesthetics

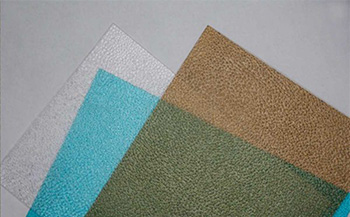

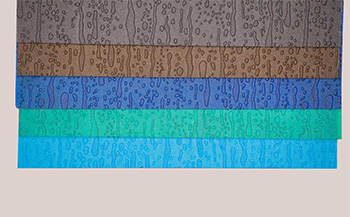

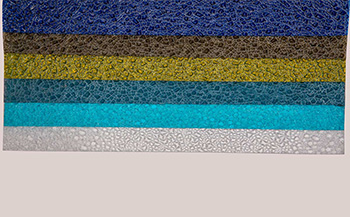

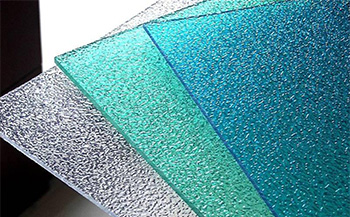

• Embossed / Raindrop / Maze / Diamond : Diffused Light & Privacy
• Specialty : Mirrored, Bullet-resistant
• Uv-stabilized / Uv-coated : Prevents Yellowing & Degradation

Specification

• Thickness : 1mm-15mm
• Standard Width : 1000mm- 2100mm
• Standard Length : Std.2.5 M, Custom
• Specific Gravity : 1.2

Product Features

• High impact resistance : the strength is 30 times that of acrylic and 200 times that of glass.
• Excellent light transmittance : 60% to 92% light transmittance
• High heat resistance : it can be used in the temperature range of -40.c to 120.c
• High weather resistance : anti-ultraviolent, anti-aging

Basic Technical Parameters of Spectralite

• Large Size, Light Weight, Easy To Install, Good Sound Insulation
• Certificated by ISO 9001 : 2015
• Various Colours

Item	Unit	Index value	Test Method
Specific Gravity	g/cm3	1.2	d-792
Impact strength	j/m	907	d-256
Tensile yield strength	mpa	69	d-638
Tensile Break strength	mpa	71	d-638
Tensile elongation, yield	%	6.5	d-638
Tensile elongation break	%	120	d-638
Tensile strength	mpa	86	d-695
Tensile modulus	mpa	2400	d-638
Thermal expansion Coefficient	w/m.0c	6.0 x 10-5	d-696
Thermal conductivity	w/m.k	0.22	c-177
Heat deformation temperature	oc	135	d-648
(Load 1.81 mpa)	oc	135	d-648
