Spectralite Extrusion Corrugated &
SSR Profile Sheet

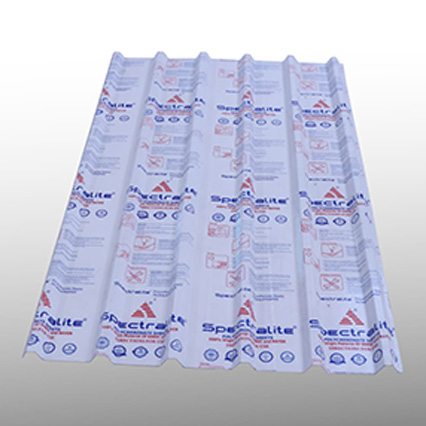

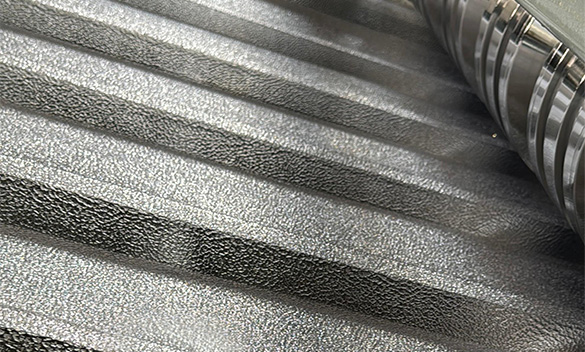

Spectralite Extrusion Corrugated Profile Sheet
Designed for maximum daylight penetration while matching metal or Fiber roofing profiles.
Light transmittance : light transmittance up to 85%
Weather resistance : the surface is UV-coated, so the appearance does not have to worry about yellowing and aging. Uv coating effectively blocks 99% of ultraviolet rays and has stable photosynthesis for plants.
Impact resistance : the strength is 10 times that of flat glass, 3-5 times that of general corrugated board, and the strength is 250 times that of traditional glass. There is almost no risk of breaking.
Temperature resistance : no deformation and quality deterioration at-40.c to 120.c
Portability : light weight, easy to carry , not easy to break, easy to construct , and excellent in processing.
Thickness Range
- 1 mm – Lightweight
- 2 mm – Standard Roofing
- 3–5 mm – Heavy-duty Load Bearing
Application Area

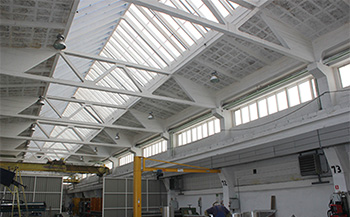

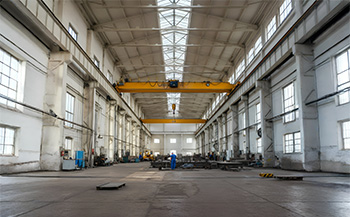

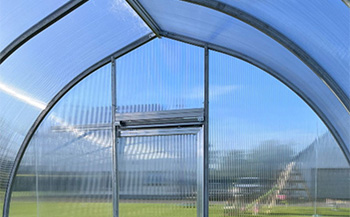

Daylighting Roof of Large Industrial Plant, Swimming Pool Stadium Daylighting Roof, High-speed Rail Station Bus Station And Airport Daylighting Roof, New Type Home Villa Lighting Shed , Residential Carport Canopy

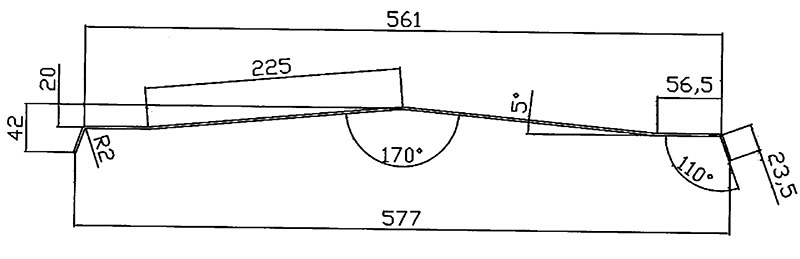

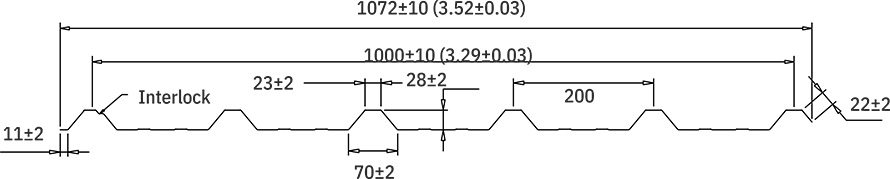

Profile Drawing
Standard Colours
Clear | Opal White | Bronze | Opal | Blue | Green | Grey/Smoke | Custom On Request
| Type | Thickness | Width | Length |
|---|---|---|---|
| Solid Sheet | 1–15 mm | 1.22 M, 2.1 M, Custom | Std. 30.5 M, Custom |
| Multiwall | 4–40 mm | 1.22 M, 2.1 M | Std. 11.9 M, Custom |
| Corrugated | 1–3 mm | As Per Profile Drawing | Std. 6 M, 12 M, Custom |
Spectralite Polycarbonate SSR Profile
